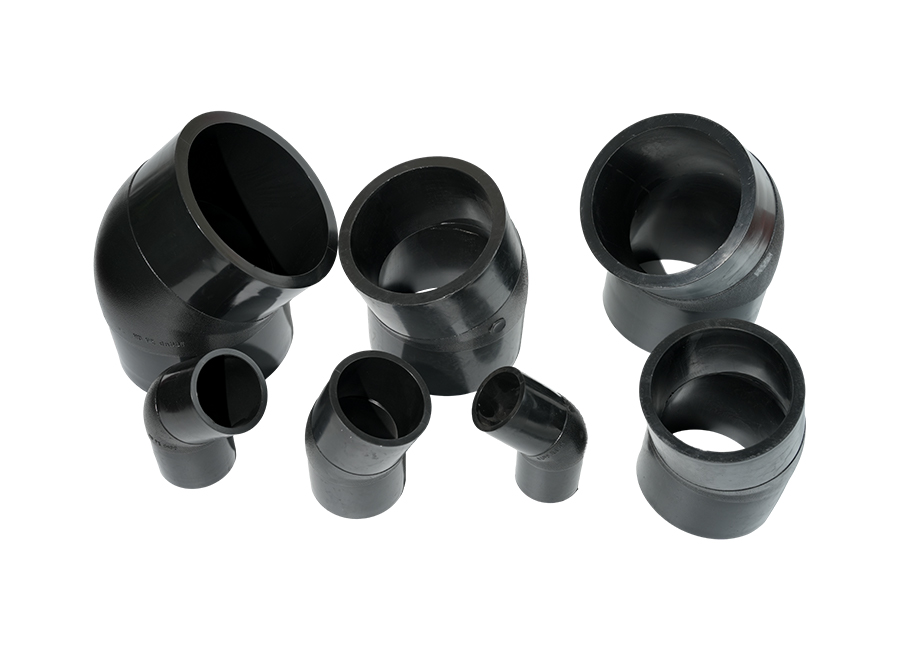

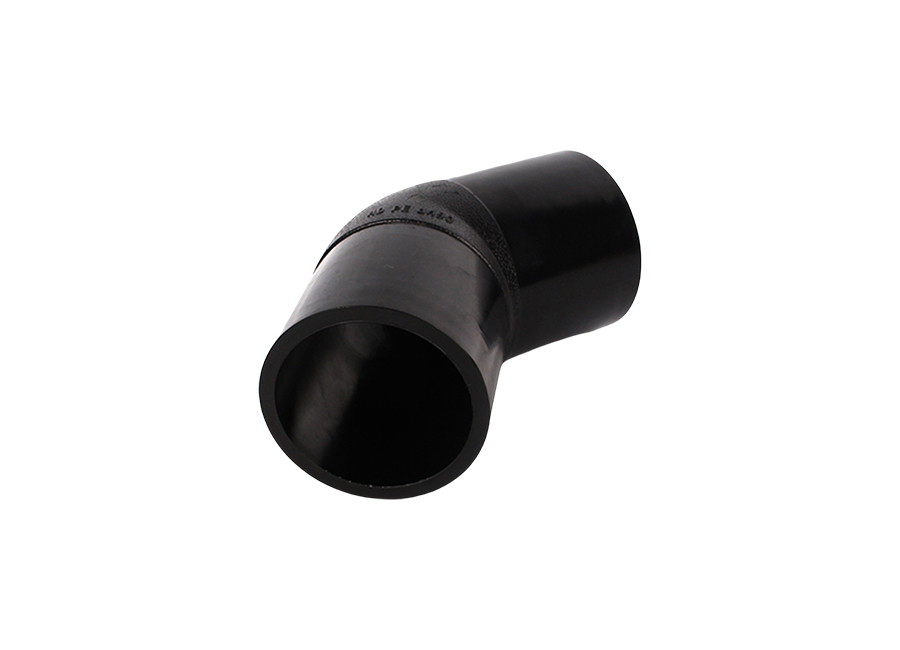

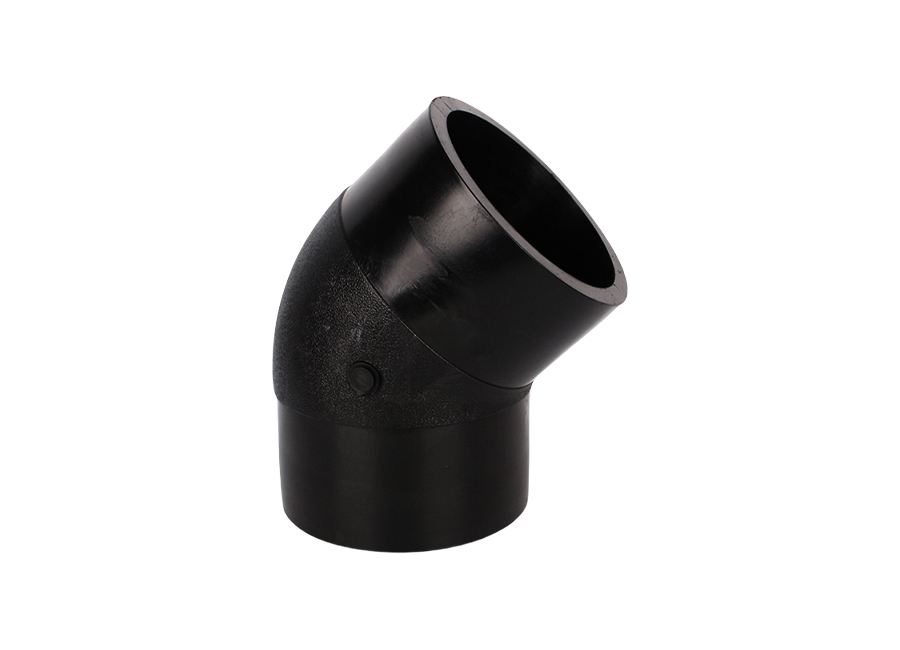

HDPE 45 Gradus Cubitus

Nostra HDPE 45-gradus cubiti fit ex PE100. Stabilitatem structuram tenent contra ambitus constructionis multiplex et variabilis, ut in usu non facile frangant aut deforment, ita diuturnum firmum operationem praestans. Neglegentiae ambitus, sive terra, aqua, sive aliae oeconomiae - stabilitatem exhibent nec facile exeduntur vel deprimuntur. Accedit, HDPE 45 graduum cubitorum modum connexionis glutino utatur ad securam connexionem ac ne ultrices proventus. Elit nos praebemus cum variis instrumentorum organorum fistularum quae in variis magnitudinibus plenarie sunt instructae et supportant OEM/ODM customizationem.

Play Video

ORDER SAMPLES

Materia: HDPE PE100
Pressura Rating: PN16 SDR11, PN12.5 SDR13.6, PN10 SDR17
Connexio methodo: Butt eget, Socket eget
Color: Niger, caeruleus.
Vestibulum signa: ISO4427, EN 12201, EN 1555, GB/T 13663.3
Oxidation Induction Time (210°C): ≥20 min
Chromaticity: <5 gradus
Turbido: ≤0.22 NTU
Odorem Lectio: Non odor
PH Value: Proxime 7.9 "
Totalis Solida Solida: 201 mg/L
Oxygeni Press: Proxime 0.6 mg/L
Totalis Carbonis organici: 0.25 mg/L
Visual Claritas: nulla particulae visibilis

Product parameter introduction

HDPE 45 Gradus Cubitus HDPE 45 Gradus Cubitus HDPE 45 Gradus Cubitus

Socket eget
Magnitudo	Pressura Level
DN 20	PN16 SDR11

DN 25	PN16 SDR11
DN 32	PN16 SDR11
DN 40	PN16 SDR11

DN 50	PN16 SDR11

DN 63	PN16 SDR11

DN 75	PN16 SDR11

DN 90	PN16 SDR11

DN 110	PN16 SDR11

Butt Fusion - PN12.5 SDR13.6/PN10 SDR17
Magnitudo	Pressura Level
DN 63	PN12.5 SDR13.6
DN 75	PN12.5 SDR13.6
DN 90	PN12.5 SDR13.6
DN 110	PN12.5 SDR13.6
DN 125	PN12.5 SDR13.6
DN 140	PN12.5 SDR13.6
DN 160	PN12.5 SDR13.6
DN 180	PN12.5 SDR13.6
DN 200	PN12.5 SDR13.6
DN 225	PN12.5 SDR13.6
DN 250	PN12.5 SDR13.6
DN 280	PN12.5 SDR13.6
DN 315	PN12.5 SDR13.6
DN 315	PN10 SDR17
DN 355	PN10 SDR17
DN 400	PN10 SDR17
DN 450	PN10 SDR17
DN 500	PN10 SDR17
DN 560	PN10 SDR17
DN 630	PN10 SDR17
DN 710	PN10 SDR17
DN 800	PN10 SDR17
DN 900	PN10 SDR17
DN 900	PN8 SDR21
DN 1000	PN10 SDR17
DN 1000	PN8 SDR21
DN 1200	PN10 SDR17
DN 1200	PN6 SDR26

Butt Fusion - PN16 SDR11
Magnitudo	Pressura Level
DN 63	PN16 SDR11
DN 75	PN16 SDR11
DN 90	PN16 SDR11
DN 110	PN16 SDR11
DN 125	PN16 SDR11
DN 160	PN16 SDR11
DN 180	PN16 SDR11
DN 200	PN16 SDR11
DN 225	PN16 SDR11
DN 250	PN16 SDR11
DN 280	PN16 SDR11
DN 315	PN16 SDR11
DN 355	PN16 SDR11
DN 400	PN16 SDR11
DN 450	PN16 SDR11
DN 500	PN16 SDR11
DN 560	PN16 SDR11
DN 600	PN16 SDR11

HDPE 45 Gradus Cubitus advantages

1. HDPE (Polyethylene-High-Density) jectiones fusione tibiarum coniungi possunt per fusionem caloris vel bases vel caloris fusionis butt glutino. Hoc non solum operationem opportunam et tutam praebet, sed etiam solidam connexionem efficit, periculum minuit ac auget efficientiam.
2. Productum conficitur obsequio multiplicibus signis internationalibus, incluso ISO 4427, EN 12201, EN 1555, et GB/T 13663.3, ad qualitatem et fidem praestandam.
3. Inductionis oxidationis tempus (ante 210°C) ≥20 minutarum indicat productum proprietates antioxidant habere, quae suum servitium extendere potest et sumptibus sustentationem minuere.
4. Color humilis, turbidus humilis, aqua pura qualitas: Color <5 graduum, turbiditas ≤0.22 NTU, procurans puritatem aquae delatae, signis occurrens ad aquam bibendam, et ad varias applicationes cum aqua alta qualitate requisita.
5. Productum valorem pH firmum habet, cum low campester of solidorum dissolutorum totalium, oxygenii biologici (BOD), et aliis indicibus. Demonstrat stabilitatem chemica, quae resisti potest exesa variarum oeconomiae, extendens suam vitam servitutem.

Applications

01 / 05

Aquae Supple
Irrigationes
Firefighting
Electric Power Communication
INCILE

Aquae Supple

Cubitus HDPE 45-gradus coniungitur utendi methodo fusionis caloris glutini, quae iuncturam inter cubitum et organum tutiorem et minus pronum ad quaestiones lacus facit. Eodem tempore etiam severam probationem in physicis et chemicis proprietatibus agere debemus, ut eius puritatem et salutem curet. 45-gradus cubiti ab Jiangyin Huada etiam habet aquam qualitatem aptabilitatem, nullo odore in gustu lectionis, stabilis pH valoris circiter 7.9, solidorum dissolutorum totalis (TDS) 201 mg/L, et indices ut oxygenii exigunt et totalem carbonis organicae quae signa industriae conveniunt, ut salvam ac stabilem operationem aquae suppeditat ratio.

Learn More

Irrigationes

45-gradus cubiti flexibiliter potest accommodare ad varias requisitiones pipelines complexiones. Utrum extensione linearis situs vel locorum mutationes, facile curetur ut aquae lenis fluat. Praecisa eius curvatio angulum et GENERALE processum faciens fabricandi nexum inter cubiti et tibiam strictam et inconsutilem, efficaciter ad impediendum quaestiones lacus, ac per hoc efficientiam augendam irrigationem. Eodem tempore, sua bona pressione resistentia, cubitus etiam permittit ad irrigationes systemata stabiliter laborandum, necessitates occurrens agriculturae modernae ad efficientem et accuratam irrigationem.

Learn More

Firefighting

Ignis ratio tutelae stabilis effectus in operatione extensa et in ambitus asperos servat. 45-gradus cubiti, cum suo singulari consilio, faciliter adaptat compositiones pipelines complexas, quae lenis aquae fluunt. Praecisa inflexio angulorum et qualitas technologiae fabricandi solidas et certas nexus creant, lacus et ratio firmitatis et salutis praecavens. HDPE XLV gradus cubiti e Jiangyin Huada altum pressuras sine deformatione et fractura sustinet, ut continuam copiam aquae tutelae ignis praebeat et subsidia ignium tutelae nisus valida praebeat.

Learn More

Electric Power Communication

HDPE 45-gradus cubiti late patentes applicationes in agris potentiae et communicationis inveniunt. Adhibentur ut potentiae funes fistulae ponantur, corrosionem praebeant resistentiam, resistentiam induant, et resistentiam impactionem ad tuendam funem obtineant. Haec cubita etiam mensurae tutelae pro potentiae facultatibus sunt sicut transformatores et vectes telephonica, accidentia efficaciter praecaventia sicut puncturis electrici et circuitus breves. Repugnantia soli, acida, alcali, HDPE 45-gradus cubiti resistunt media exesa, minuentes lapsum et damnum. Etiam vires externae ictum sustinent, extenuando verisimilitudinem damni, funis lacus et cursus breves. Hoc pipelines sustentationem gratuita minuit, potestatem copiam constantiam auget, et transmissionem qualitatem et ministerium vitae opticorum retinacula melioris facit.

Learn More

INCILE

Per processum INCILE, quaedam vis ictum generatur cum aqua per cubitum transit. Si cubiti ratio irrationabilis est, facile est damnum inferre pipeline vel laxitas nexuum inferre. 45-gradus angulus designatus cubiti hanc vim ictum minuere potest et integritatem systematis pipelini tueri. Praeter, HDPE 45-gradus cubiti etiam repugnantiam bonam habent. In systematis INCILE, praesertim in aedificiis altae ortum vel magnas facultates publicas, pipelinea maiora aquae pressioni sustinere debent. 45-gradus cubiti altum pressuram sustinere potest, firmitatem et salutem conservandi ratio INCILE systematis in operatione summi oneris..

Learn More
