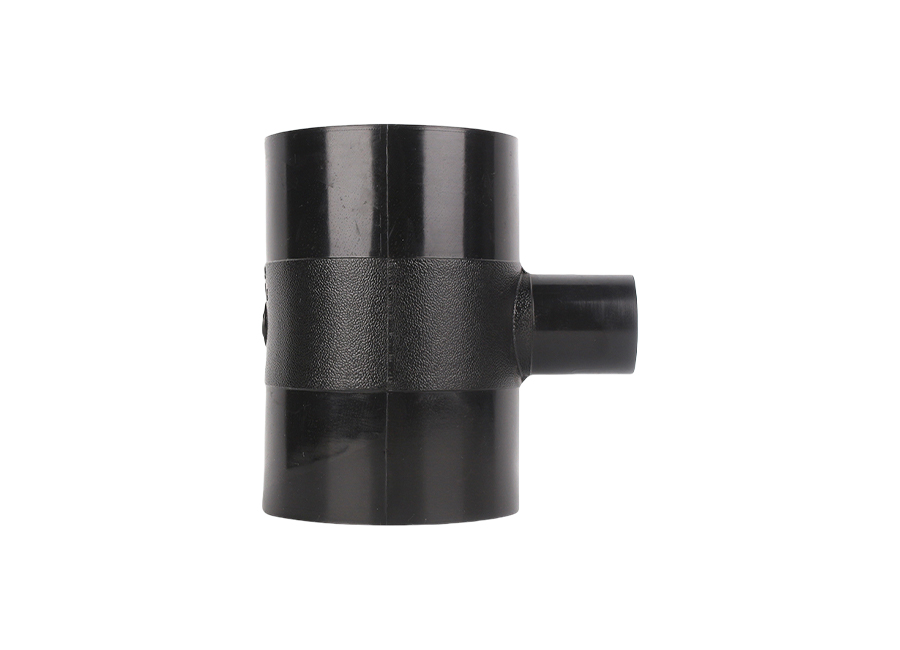

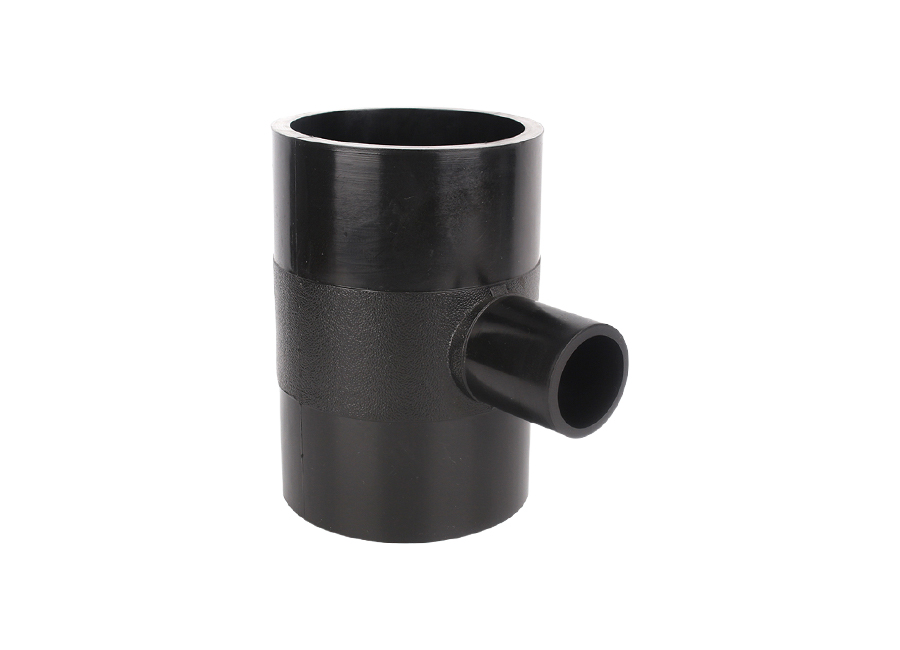

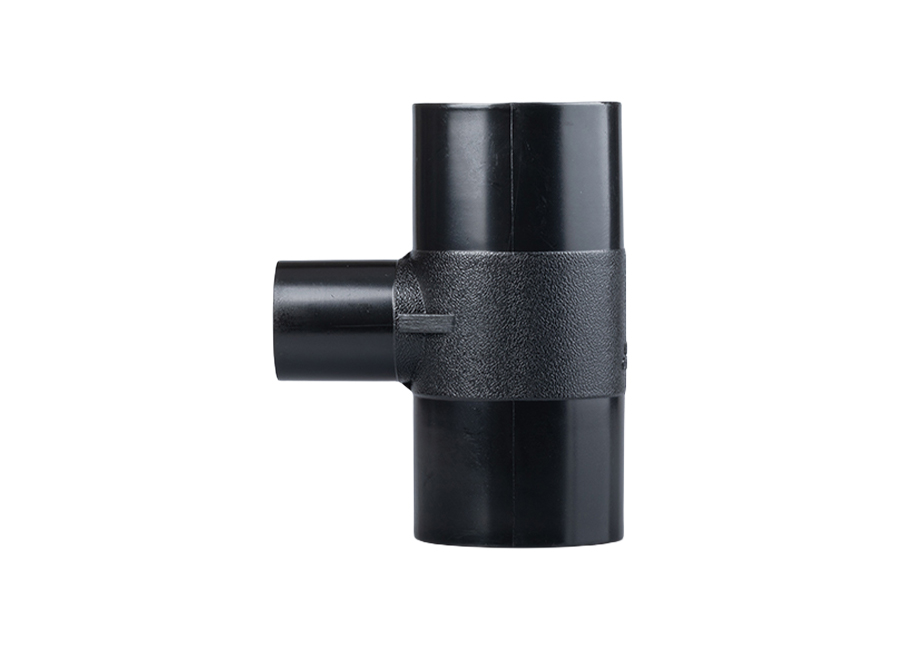

HDPE Reducing Tee

HDPE reducens Tee per Jiangyin Hua Da lineamenta tres portus diversarum magnitudinum, permittens facilem et flexibilem aquarum directionem directionem ad necessitates variarum systematum pipelinearum multiplicium occurrere. In terminis materialibus, PE100 qualitatem adhibemus ut materia rudis. Haec materia non solum mirabilem corrosionis resistentiam habet, sed etiam altam vim et longam vitam, ut operandi stabilem producti etiam sub condicionibus environmental asperis procurat. Ad pressionum gradus, nostra reducendo t optiones multiplices offert, inclusis PN16 SDR11, PN12.5 SDR13.6, et PN10 SDR17, ut tincidunt diversis pressionis requisitis. Accedit, producto caloris fusione pro nexus glutino utitur, ut securam et bene signatam iuncturam quae effluo efficaciter impediat. Pro colore, nostra reducere thee in nigra, caerulea et aliis optionibus in promptu est, cum consuetudine colorum officia quae ad personalitatem emptoris necessaria sunt..

Play Video

ORDER SAMPLES

Materia: HDPE PE100
Pressura Ratings: PN16 SDR11, PN12.5 SDR13.6, PN10 SDR17
Connexio methodo: Butt eget, Socket eget
Colores: Niger, caeruleus (consuetudo color bene available)
Production Signa: ISO4427, EN 12201, EN 1555, GB/T 13663.3
Oxidation Induction Time (210°C): ≥20 min
Chlorophyllum: <5 gradus
Turbido: ≤0.22 NTU
Odorem Lectio: Non deprehensus est odor
PH Value: Proxime 7.9 "
Totalis Solida Solida: 201 mg/L
Oxygeni Press: Proxime 0.6 mg/L
Totalis Carbonis organici: 0.25 mg/L
Visual Claritas: nulla particulae visibilis

Product parametri introductio

HDPE Reducing Tee HDPE Reducing Tee HDPE Reducing Tee

Socket eget
Magnitudo	Pressura Level
DN 25-20	PN16 SDR11
DN 32-20	PN16 SDR11
DN 32-25	PN16 SDR11
DN 40-20	PN16 SDR11
DN 40-25	PN16 SDR11
DN 40-32	PN16 SDR11
DN 50-20	PN16 SDR11
DN 50-25	PN16 SDR11
DN 50-32	PN16 SDR11
DN 50-40	PN16 SDR11
DN 63-20	PN16 SDR11
DN 63-25	PN16 SDR11
DN 63-32	PN16 SDR11
DN 63-40	PN16 SDR11
DN 63-50	PN16 SDR11
DN 75-20	PN16 SDR11
DN 75-25	PN16 SDR11
DN 75-32	PN16 SDR11
DN 75-40	PN16 SDR11
DN 75-50	PN16 SDR11
DN 75-63	PN16 SDR11
DN 90-32	PN16 SDR11
DN 90-40	PN16 SDR11
DN 90-50	PN16 SDR11
DN 90-63	PN16 SDR11
DN 90-75	PN16 SDR11
DN 110-32	PN16 SDR11
DN 110-40	PN16 SDR11
DN 110-50	PN16 SDR11
DN 110-63	PN16 SDR11
DN 110-75	PN16 SDR11
DN 110-90	PN16 SDR11

Butt Fusion - PN12.5 SDR13.6/PN10 SDR17
Magnitudo	Pressura Level	Magnitudo	Pressura Level
DN75-50	PN12.5 SDR13.6	DN 315-160	PN12.5 SDR13.6
DN 75-63	PN12.5 SDR13.6	DN 315-160	PN10 SDR17
DN 90-50	PN12.5 SDR13.6	DN315-200	PN12.5 SDR13.6
DN 90-63	PN12.5 SDR13.6	DN315-200	PN10 SDR17
DN 90-75	PN12.5 SDR13.6	DN315-225	PN12.5 SDR13.6
DN 110-50	PN12.5 SDR13.6	DN315-225	PN10 SDR17
DN 110-63	PN12.5 SDR13.6	DN 315-250	PN12.5 SDR13.6
DN 110-75	PN12.5 SDR13.6	DN 315-250	PN10 SDR17
DN 110-90	PN12.5 SDR13.6	DN 315-280	PN10 SDR17
DN 125-50	PN12.5 SDR13.6	DN 355-90	PN10 SDR17
DN 125-63	PN12.5 SDR13.6	DN 355-110	PN10 SDR17
DN 125-75	PN12.5 SDR13.6	DN 355-160	PN10 SDR17
DN 125-90	PN12.5 SDR13.6	DN 355-200	PN10 SDR17
DN 125-110	PN12.5 SDR13.6	DN 355-250	PN10 SDR17
DN 140-63	PN12.5 SDR13.6	DN 355-315	PN10 SDR17
DN 140-75	PN12.5 SDR13.6	DN 400-90	PN10 SDR17
DN 140-90	PN12.5 SDR13.6	DN 400-110	PN10 SDR17
DN 140-110	PN12.5 SDR13.6	DN 400-160	PN10 SDR17
DN 140-125	PN12.5 SDR13.6	DN 400-200	PN10 SDR17
DN 160-50	PN12.5 SDR13.6	DN 400-250	PN10 SDR17
DN 160-63	PN12.5 SDR13.6	DN 400-315	PN10 SDR17
DN 160-75	PN12.5 SDR13.6	DN 400-355	PN10 SDR17
DN 160-90	PN12.5 SDR13.6	DN 450-90	PN10 SDR17
DN 160-110	PN12.5 SDR13.6	DN 450-110	PN10 SDR17
DN 160-125	PN12.5 SDR13.6	DN 450-160	PN10 SDR17
DN 160-140	PN12.5 SDR13.6	DN 450-200	PN10 SDR17
DN 160-140	PN12.5 SDR13.6	DN 450-225	PN10 SDR17
DN 180-63	PN12.5 SDR13.6	DN 450-250	PN10 SDR17
DN 180-75	PN12.5 SDR13.6	DN 450-280	PN10 SDR17
DN 180-90	PN12.5 SDR13.6	DN 450-315	PN10 SDR17
DN 180-110	PN12.5 SDR13.6	DN 450-355	PN10 SDR17
DN 180-160	PN12.5 SDR13.6	DN 450-400	PN10 SDR17
DN 200-50	PN12.5 SDR13.6	DN 500-110	PN10 SDR17
DN 200-63	PN12.5 SDR13.6	DN 500-125	PN10 SDR17
DN 200-75	PN12.5 SDR13.6	DN 500-160	PN10 SDR17
DN 200-90	PN12.5 SDR13.6	DN 500-200	PN10 SDR17
DN 200-110	PN12.5 SDR13.6	DN 500-225	PN10 SDR17
DN 200-125	PN12.5 SDR13.6	DN 500-250	PN10 SDR17
DN 200-160	PN12.5 SDR13.6	DN 500-280	PN10 SDR17
DN 200-180	PN12.5 SDR13.6	DN 500-315	PN10 SDR17
DN 225-63	PN12.5 SDR13.6	DN 500-355	PN10 SDR17
DN 225-75	PN12.5 SDR13.6	DN 500-400	PN10 SDR17
DN 225-90	PN12.5 SDR13.6	DN 500-450	PN10 SDR17
DN 225-110	PN12.5 SDR13.6	DN 560-110	PN10 SDR17
DN 225-160	PN12.5 SDR13.6	DN 560-160	PN10 SDR17
DN 225-200	PN12.5 SDR13.6	DN 560-200	PN10 SDR17
DN 250-63	PN12.5 SDR13.6	DN 560-225	PN10 SDR17
DN 250-75	PN12.5 SDR13.6	DN 560-250	PN10 SDR17
DN 250-90	PN12.5 SDR13.6	DN 560-280	PN10 SDR17
DN 250-110	PN12.5 SDR13.6	DN 560-315	PN10 SDR17
DN 250-160	PN12.5 SDR13.6	DN 560-355	PN10 SDR17
DN 250-200	PN12.5 SDR13.6	DN 560-400	PN10 SDR17
DN 250-225	PN12.5 SDR13.6	DN 560-450	PN10 SDR17
DN 280-63	PN12.5 SDR13.6	DN 560-500	PN10 SDR17
DN 280-75	PN12.5 SDR13.6	DN 630-110	PN10 SDR17
DN 280-90	PN12.5 SDR13.6	DN 630-160	PN10 SDR17
DN 280-110	PN12.5 SDR13.6	DN 630-200	PN10 SDR17
DN 280-160	PN12.5 SDR13.6	DN 630-225	PN10 SDR17
DN 280-200	PN12.5 SDR13.6	DN 630-250	PN10 SDR17
DN 280-250	PN12.5 SDR13.6	DN 630-280	PN10 SDR17
DN 315-63	PN12.5 SDR13.6	DN 630-315	PN10 SDR17
DN 315-75	PN12.5 SDR13.6	DN 630-355	PN10 SDR17
DN 315-90	PN12.5 SDR13.6	DN 630-400	PN10 SDR17
DN 315-110	PN12.5 SDR13.6	DN 630-450	PN10 SDR17
DN 315-110	PN10 SDR17	DN 630-500	PN10 SDR17

Butt eget - 16kg SDR11
Magnitudo	Pressura Level
DN 63	PN16 SDR11
DN 75	PN16 SDR11
DN 90	PN16 SDR11
DN 110	PN16 SDR11
DN 125	PN16 SDR11
DN 140	PN16 SDR11
DN 160	PN16 SDR11
DN 180	PN16 SDR11
DN 200	PN16 SDR11
DN 225	PN16 SDR11
DN 250	PN16 SDR11
DN 280	PN16 SDR11
DN 315	PN16 SDR11
DN 355	PN16 SDR11
DN 400	PN16 SDR11
DN 450	PN16 SDR11
DN 500	PN16 SDR11
DN 560	PN16 SDR11
DN 630	PN16 SDR11

HDPE Reducing Tee advantages

1. Magnam experientiam productionis possidemus et systema temperantiae qualitatis rigoris, dediti ut emptores praebeant uberes fructus et comprehensive post venditionesque servitutis. Pro magnitudine, materia, vel colore minuendi Tee quod petis, tuis necessitatibus occurrere possumus.
2. Tee nostra reductio fit ex qualitate materiae virginali, mira featura corrosio resistentiae et longi temporis spatium. Sub variis conditionibus duris stabiliter operari potest, altam pressionem sustinere, salutem ac stabilitatem systematis pipelini curare.
3. Tee reducens molliter accommodare potest ad connexionem requisita diversarum diametrorum fistularum, potest efficaciter simpliciorem reddere processum constructionis systematis pipelini et efficaciam institutionis emendare.
4. Ex PE100 factus, efficit ut opus mirabilem corrosionis resistentiam habeat et vires altas, permittens diuturnum tempus stabilis operationis sub variis condicionibus asperis.
5. Sustentationem reducendi Tee quoque commoda est. Ob fabricam eius designationem et materiam delectu, exercitatione sustentationem et reparationem operis simplex et facilis efficitur, reducendo impensas sustentandas et ad vitam servitii amplificandam..

Applications

01 / 05

Aquae Supple
Irrigationes
Firefighting
Electric Power Communication
INCILE

Aquae Supple

Aptentiones reducentes praestantem utilitatem in aquarum copia applicationes demonstrant ob proprietates singulares physicas et chemicae. In systematis aquarum copiae, scenopegiae minuentes, cum mirabili corrosione resistentia, exesum aquae fluxum diu sustinere possunt, stabilis operationis pipelini procurans. Pressio resistentiae ad chirographa reducendi clavis est etiam ad eorum usum latissimum in systematibus aquarum copia. Sive retiacula aquae urbanae copiae sive systemata aquae industrialis est, chirographa reducens certas nexus pipelines praebere possunt ad necessitates summus pressurae aquae transmissionis.

Learn More

Irrigationes

Decationes reducens molliter fistulas diversarum diametrorum coniungere possunt, praebens pro personali systemate irrigationis fundato in speciali extensione arvi et frugum necessitates. Ordinando et minuendo rationabiliter convenientia, ratio irrigationis totam arvum efficacius operire potest, ita ut unaquaeque pars terrae congruam aquae copiam accipiat. Per processum rigandi, saepe necesse est ut aqua fluat aequaliter et stabiliter unicuique puncto irrigationis traditae. Tee lites reducendo efficaciter possunt hunc finem assequi, procurans operationem efficientis systematis irrigationis.

Learn More

Firefighting

Reducendi Tee caerimonias miram pressionis resistentiam habent in systematibus pugnandi, quae typice resistunt aquae pressurae altae fluit ut efficax firepugnatio. Factis e materiarum viribus altae, densationes minuentes ictum aquae pressurae altae sustinere possunt, stabilis operandi systematis incendii in momentis criticis praestando, sine exitibus sicut effluo vel ruptis.

Learn More

Electric Power Communication

Applicatio ad reductiones congruorum theologicarum efficax opera potentiarum systematum communicationis efficaciores et flexibiles facit. In systematis communicationis potentiae, variae plerumque sunt specificationes ac rationes e rudentibus, et ad minuendos thensauros aptas ad faciliorem hanc multiplicitatem tractandam ordinantur. Funes diuersarum diametri coniungere possunt atque inter eos lenis transitus efficiunt, eoque processu faciliorem reddunt ac efficientiam laboris amplificandam.

Learn More

INCILE

Reducendo Tee caerimonias efficaciter possunt optimize aqua distributio INCILE systematum. Per processum INCILE, aquae fluunt saepe per plures ramos necesse est transire, et speciale propositum minuendi congruentiae potest efficere ut etiam distributio aquae fluat ad puncta ramorum, vitando quaestiones aquae defluentia intentionis vel dispersionis. Haec distributio optimized non solum meliorem efficientiam systematis adficiosat, sed etiam periculum fistulae impedimentum minuit.

Learn More
